Superfine Ball Mill Production Line

Process Flow of Superfine Ball Mill Production Line LHM:

Flow chart I

1. Jaw crusher
2. Hammer mill
3. Hoisting machine I
4. Material storage hopper I
5. Variable frequency controlled feeding system

6. Main machine of superfine ball mill
7. Hoisting machine II
8. Material storage hopper II
9. Classifier
10. Cyclonic collector

11. Pulsed dust collector
12. Induced draft fan
13. Air compressor
14. Screw conveyor for feed back

Flow Chart II

1. Jaw crusher
2. Hammer mill
3. Hoisting machine I
4. Material storage hopper I
5. Variable frequency controlled feeding system
6. Main machine of superfine ball mill

7. Hoisting machine II
8. Material storage hopper II and III
9-1. Classifier I
9-2. Pulsed dust collector I
9-3. Induced draft fan I

10-1. Classifier II
10-2. Pulsed dust collector II
10-3. Induced draft fan II
11. Air compressor
12. Screw conveyor for feed back

Flow Chart III

1. Jaw crusher
2. Hammer mill
3. Hoisting machine I
4. Material storage hopper I
5. Variable frequency controlled feeding system
6. Main machine of grinding mill

7. Hoisting machine II
8. Material storage hopper II
9-1. Classifier I
9-2. Cyclonic collector
9-3. Pulsed dust collector I
9-4. Induced draft fan I

10-1. Classifier II
10-2. Pulsed dust collector II
10-3. Induced draft fan II
11. Freeze drying machine
12. Air compressor

Flow chart IV

1. Hoisting machine
2. Material storage hopper
3. Variable frequency controlled feeding system
4. Main machine of superfine pulverizer

5. Classifier
6. Cyclonic collector
7. Pulsed dust collector

8. Induced draft fan
9. Air compressor
10. Screw conveyor for feed back

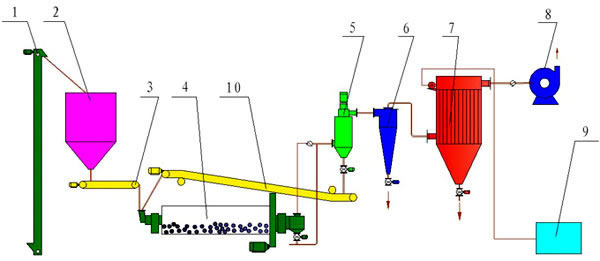

Flow chart V

1. Hoisting machine
2. Material storage hopper
3. Variable frequency controlled feeding system

4. Main machine of ball mill
5. Classifier
6. Cyclonic collector

7. Pulsed dust collector
8. Induced draft fan
9. Air compressor

Flow chart VI

1. Jaw crusher
2. Hammer mill
3. Hoisting system I
4. Storage hopper I
5. Variable frequency controlled
feeding system

6. Main machine of superfine grinding equipment
7. Hoisting system II
8. Storage hopper II
9. Classifier
10. Pulsed dust collector

11. Induced draft fan
12. Intermediate hopper
13. Packaging machine
14. Air compressor
15. Screw conveyor for feed back
