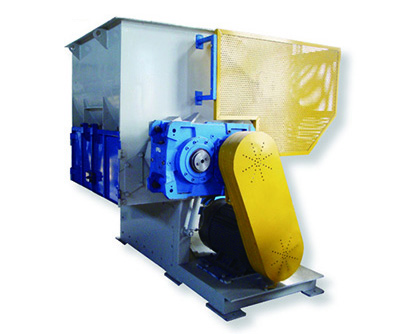

SH Industrial Shredder

Features
1. Equipped with powerful two-speed swing type hydraulic pusher, which avoids the occurrence of jamming and reduces the wear of the inner rail.
2. The single-shaft shredder is driven by a low-speed and high-torque reducer.
3. This shredder has a smaller footprint than the conventional shredder with horizontal pusher.
4. The bolted drive shaft makes replacement easier.
5. Rotors available in a variety of models and materials.

Applications
It can meet the requirements of waste crushing and recycling in various industries, including general waste recycling, electronic waste recycling and domestic garbage recycling, such as: various plastic products (blocks, tubes, films, woven bags, etc.), as well as various types of electronic cable waste, ICB barrels, waste paper, waste wood and various organic materials.

Technical Parameters

Model	SH-80	SH-90	SH-120	SH-150	SH-200
Rotor width/rotor diameter (mm)	850/387	850/457	1200/457	1500/457	2000/457
Power (kw)	37	55	55	75	2 ×55
Blade quantity (pcs)	40/60	40/60	54/81	68/102	96/144
Working area (mm)	690×730	800×730	800×1010	800×1290	800×1850
